- Efficiency and agility for grease lubrication;
- Cost reduction in machinery and equipment maintenance;
- Lower air compressed consumption generating savings.
- Reservoir with capacity up to 50 kg.
- Maximum working pressure 100PSI (6.9 BAR)

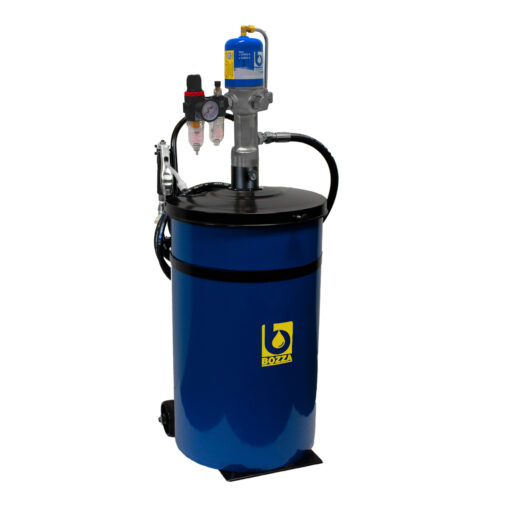

HEAVY-DUTY PNEUMATIC PUMP FOR GREASE 11020-V-3-R50-G5
Mobile equipment for grease. Recommended for customers who require agility and efficiency in the lubrication process. Ideal for automotive dealerships, fast lube centers, service shops, heavy-duty dealerships, fleet services facilities, lube trucks, mining and agriculture, among others.
Features
- Reservoir: 50 kg Capacity;
- Free flow: 1.700 kg / minute;
- Ratio: 60:1;
- Air inlet size: ¼ inch NPT;
- Aluminum injected block with nickel treatment;
- Fluid outlet size 1/2 inch NPT;
- Working pressure: 80 to100 PSI;
- Output pressure: 4000 a 5000 PSI;
- Air consumption: 10.0 foot³ / minute;
Consisting of
- Air regulating filter – mod. FL2000;
- Metal air duct;
- Double muffler assembly;
- Internal filter in the suction system;
- Grease compactor – mod. 12020-TA2;
- Reservoir cover – mod. 4040-T;
- 50 kg Reservoir;
- 50 kg reservoir cart;
- Swivel connection mod. 7302;
- Control valve mod. 5040;
- 3 m hose mod. 5680-3;
Optional items
- Control meter mod. BZ-2000;
- 6 m hose mod. 5680-6;
- 10 m hose mod. 5680-10;
- 15 m hose mod. 5680-15;
- 20 m hose mod. 5680-20;
