- Reservoir: 50-60 kg (Not included)
- Free flow: 1700g/min
- Ratio: 60:1
- Air inlet size: ¼ inch NPT
- ¼ inch JIC Outlet (Internal)
- Working Pressure: 80-100 PSI
- Output Pressure: 4800-6000 PSI
- Air consumption 10.0 foot³/min.
- Maximum working pressure 100PSI (6.9 BAR)
Features

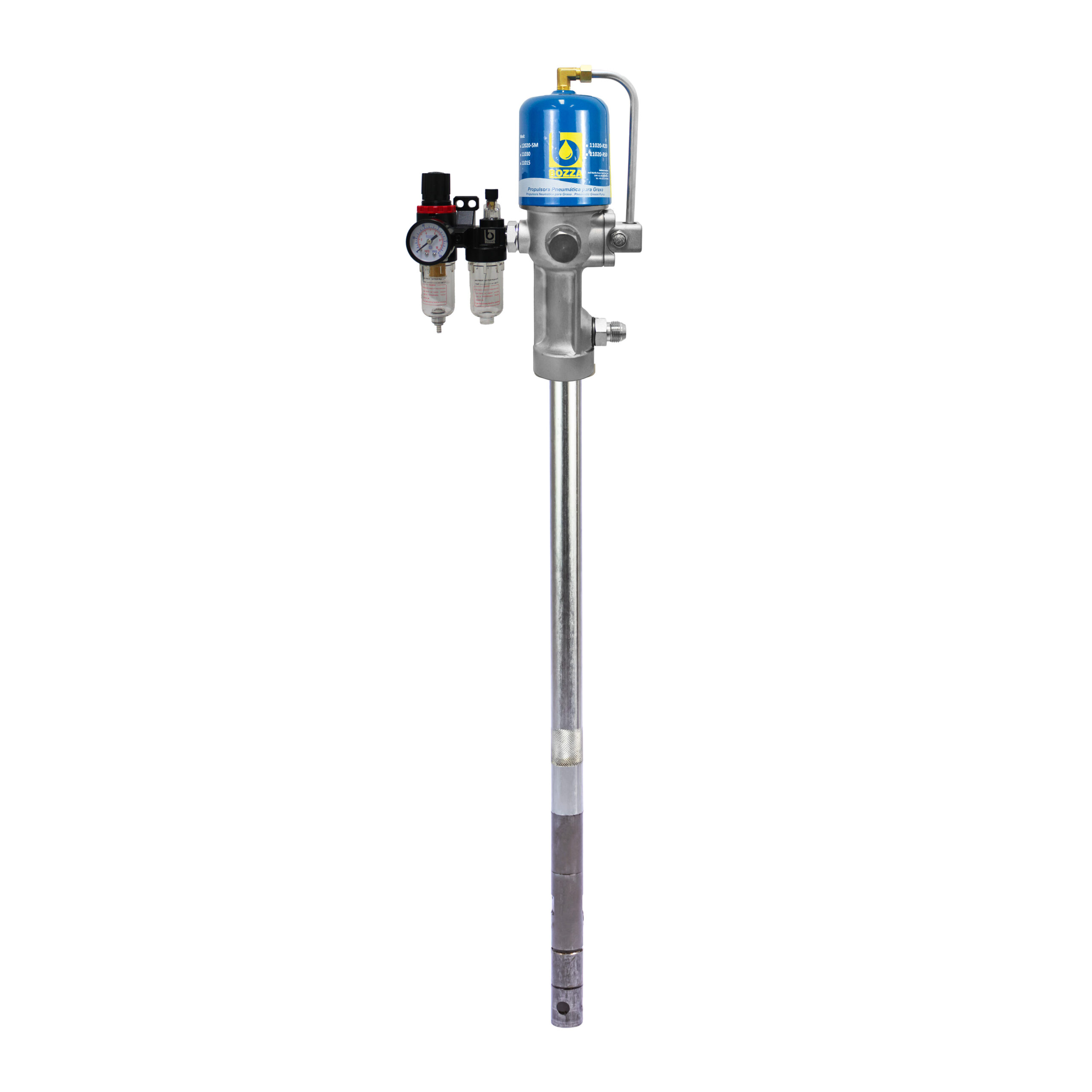

- Heavy-duty propelling pump for grease
- Air regulating filter – (mod.FL2000);
- Aluminum injected block with nickel treatment;
- Grease compactor (mod. 12020-TA2);
- 50 kg Reservoir cover (mod. 4040-T);
- Metal air duct;
- Double muffler assembly;
- Internal filter in the suction system.
Consisting of
- Air regulating filter – (mod. FL2000;
- Metal air duct;
- Double muffler assembly;
- Internal filter in the suction system;
- Grease compactor – mod. 12020-TA2;
- Reservoir cover – mod. 4040-T.
Optional items
- Control meter mod. BZ-2000;
- Control valve mod. 5040;
- 3 m hose mod. 5680-3;
- 6 m hose mod. 5680-6;
- 10 m hose mod. 5680-10;
- 20 m hose mod. 5680-20;
- Swivel connection mod. 7302.
