- Free flow 45 L/min
- Ratio 5:1
- ½ inch NPT air inlet
- Outlet MF ½ inch JIC37
- Working Pressure: 80-100 psi
- Output Pressure: 400-500 psi
- Air consumption: 30 ft³/min.
- Maximum working pressure 100PSI (6.9 BAR)

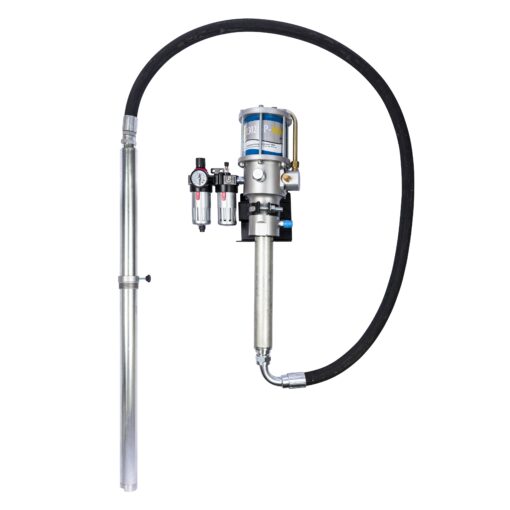

HEAVY-DUTY PNEUMATIC PUMP FOR OIL 13021-P-MAX-G4
This heavy-duty propelling pump for oil is excellent for medium to high flow equipment. Recommended for companies in the mining sector, industrial, steel, transportation, dealerships, multipoint lubrication centers, and industries in all segments in which high flow rates are required. 13 MAX has a new engine made of anodized aluminum, with easy maintenance and reduced weight, comes with a double muffler and reinforced air duct. Its performance enables up to 10 simultaneous points in the lubrication line.
Features
- Heavy-duty propelling pump for oil
- ½ inch Lubrifil
- Metal air duct and double muffler assembly
- Bracket kit for wall adaptation
- Internal filter in the suction system
- Reservoir: 50 – 209 L
- Weight: 14.600 kg
- L= 171.5 mm x H=692 mm
Consisting of
- Lubrifil 1/2″;
- Metal air conductor;
- Double set of silencers;
- 2″ BSP fixing plug for drums;
- Wall bracket (mod. 13021-P01);
- Suction assembly.
Optional items
- Control valve (mod. 5031-NEW);
- Digital meter (mod. B-900);
- Press Set digital meter (mod. BP-3000-C-NEW);
- 3 meter hose (mod. 5690-3);
- 6 meter hose (mod. 5690-6);
- 10 meter hose (mod. 5690-10);
- 15 meter hose (mod. 5690-15);
- 20 meter hose (mod. 5690-20).
