- Reservoir: 50-60 L (Not included)
- Free flow: 25 L/min
- Ratio: 3:1
- Air inlet size: ¼ inch NPT Thread
- Fluid outlet size: 1/2″ JIC37
- Working Pressure: 80-100 PSI
- Output Pressure: 240-300 PSI
- Air consumption: 10.0 foot³/min.
- *Viscosity up to SAE 90.
- Maximum working pressure 100PSI (6.9 BAR)

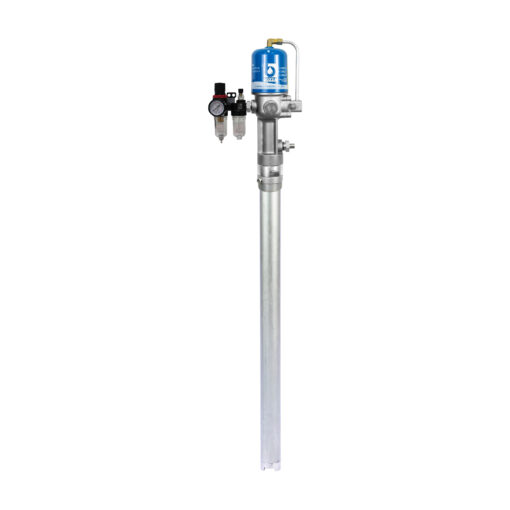

PROPELLING PUMP FOR OIL 50-60 L – 12021-T-G5
Fixed lubricating oil pump. Ideal for customers who need agility and efficiency in the lubrication process. Adaptable to 50-60 L reservoirs. Recommended for automotive dealerships, fast lube centers, fleet service facilities, heavy-duty dealerships, lube trucks, lubricant transfer, mining, service shops and industrial segments, among others.
Features
- Heavy-duty propelling pump for oil
- Adaptable to 50-60 L reservoirs (Not included);
- Air regulating filter (mod. FL2000);
- Aluminum injected block with nickel treatment;
- Metal air duct;
- Double muffler assembly.
Consisting of
- Air regulating filter – (mod.FL2000);
- Metal air duct;
- Double muffler assembly;
Optional items
- Control meter (mod. 5031-New);
- Gun with digital meter (mod. B-900);
- Presetting digital meter (mod. BP-3000C);
- 3 m hose (mod. 5690-3);
- 6 m hose (mod. 5690-6);
- 10 m hose (mod. 5690-10);
- 15 m hose (mod. 5690-15);
- 20 m hose (mod. 5690-20).
