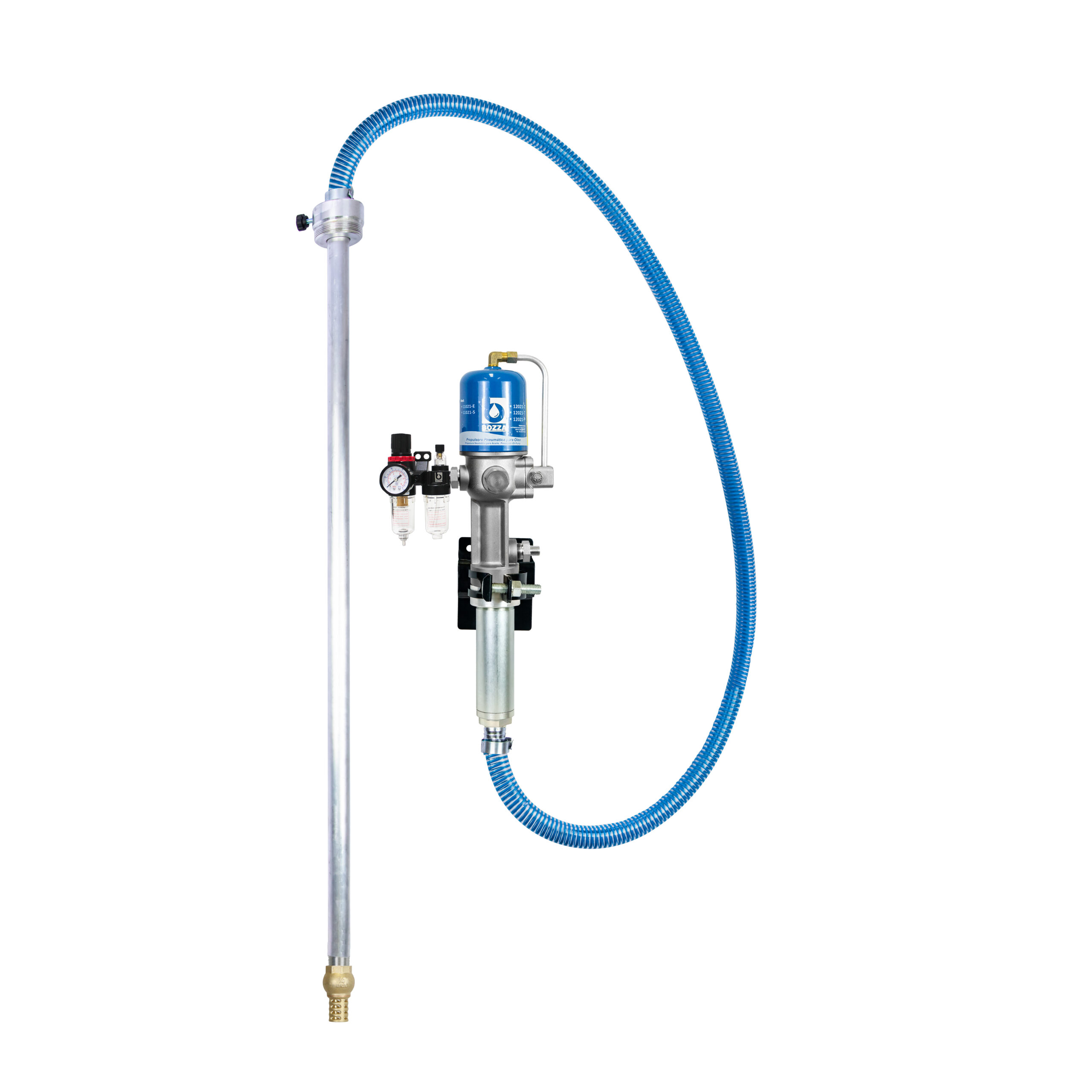

HEAVY -DUTY PROPELLING PUMP FOR OIL WITH WALL BRACKET 50-209 L – 12021-P-G5

HEAVY -DUTY PROPELLING PUMP FOR OIL WITH WALL BRACKET 50-209 L – 12021-P-G5

SKU 01.200.0723 Categories , , , Tags , , ,

Fixed lubricating oil pump. Ideal for customers who need agility and efficiency in the lubrication process.

Adaptable to 50-209 L reservoirs with wall brackets configuration. Recommended for automotive dealerships, fast lube centers, fleet service facilities, heavy-duty dealerships, lube trucks, lubricant transfer, mining, service shops and industrial segments, among others.

Get a quote

Related Products

Acoplador hidráulico com engate rápido 300-ER Bozza

Hydraulic coupler with quick coupling for grease 300-ER

BEAVER-AL-1/2-V Double Diaphragm Pneumatic Pump

BEAVER-AL-1.1/2-V Double Diaphragm Pneumatic Pump

PROPELLING PUMP FOR OIL 50-60 L – 12021-T-G5

HEAVY-DUTY PROPELLING PUMP FOR GREASE 20 KG – STRIKE SYSTEM – 11030-G5
Propulsora Pneumática RHINO-GR

HEAVY-DUTY PNEUMATIC PUMP FOR OIL 14801-MAX-G4
Propulsora pneumática par óleo 13021-P

HEAVY-DUTY PNEUMATIC PUMP FOR OIL 13021-P-MAX-G4
Propulsora pneumática para graxa 13020-MAX-G4

HEAVY DUTY PNEUMATIC PUMP FOR GREASE 13020-MAX-G4 200 KG
Medidor Digital para Óleo BP-3000C

DIGITAL OIL METER BP-3000C-NEW

OIL DRAIN RACK WITH FUNNELS 1010-CF-R20-G4 20 L

MANUAL PUMP FOR FLUID TRANSFER 7802-G2 50-209 L

MANUAL PUMP FOR GREASE 7029-AIR 500GR

Description

  • 50-209 L Reservoir (Not included)
  • Free flow 25 L/min
  • Ratio 3:1
  • ¼ inch NPT air inlet
  • ½ inch MF JIC37 Outlet
  • Working Pressure 80- 100 PSI
  • Output pressure 240-300 PSI
  • Air consumption 10.0 foot³/min.
  • *Viscosity up to SAE 90.
  • Maximum working pressure 100PSI (6.9 BAR)
  • Heavy duty propelling pump for oil
  • Adaptable to 50-209 L reservoirs (Not included);
  • ¼ inch Regulating Filter (mod. FL2000);
  • Aluminum injected block with nickel treatment;
  • Bracket kit for wall adaptation (mod. SF12021-G2);
  • Metal air duct;
  • Double muffler assembly;
  • Suction assembly.
  • Air regulating filter – (mod.FL2000);
  • Wall bracket (mod. SF12021-G2);
  • Suction assembly;
  • Metal air duct;
  • Double muffler assembly.
  • Control meter (mod. 5031-New);
  • Gun with digital meter (mod. B-900);
  • Presetting digital meter (mod. BP-3000C);
  • 3 m hose (mod. 5690-3);
  • 6 m hose (mod. 5690-6);
  • 10 m hose (mod. 5690-10);
  • 15 m hose (mod. 5690-15);
  • 20 m hose (mod. 5690-20).
